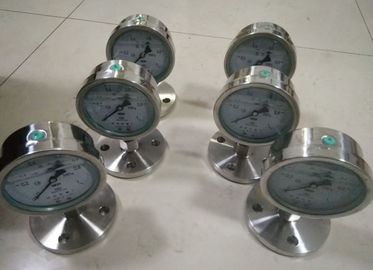

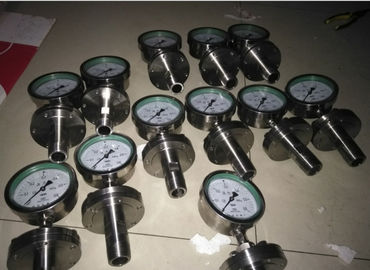

Stainless steel corrosion proof diaphragm pressure gauge flang type YTP -100F
Diaphragm type YTP-100F stainless steel corrosion proof pressure gauge, instrument by indirect measurement structure, suitable for measuring the viscosity, easy to crystallize, strong corrosion resistance, high temperature of the liquid, gas pressure. The isolation diaphragm has a variety of materials, suitable for chemical industry, petroleum, chemical fiber, dyeing, alkali, medicine, food and other industries the measurement of different corrosive medium. The vibration type shell filling for damping liquid silicone oil or glycerin. Two, the main technical performance:
1 display accuracy: level 1.6; level 2.5
2 use working temperature:
Medium temperature: -5 deg. C ~ 55 deg. C
Ambient temperature: -25deg. C ~ 55deg. C
3 working environment vibration:
Common type: V.H.3 level
Vibration proof type: class V.H.4
YTP-100--A--316--2.5-Z--FYIP-100 representative: Model
A representative: interface form
A: threaded connection;
B: open flange connection;
C: flange connection
316 representatives: Ta: C: tantalum diaphragm materials; Hastelloy Monel alloy; N:; 316L: stainless steel containing molybdenum
2.5 represents: measuring range upper limit value
Z: seismic gaps: ordinary type;
F representative: anti-corrosion type; blank: ordinary type
YIP type diaphragm pressure gauge, corrosion resistant pressure gauge model, specifications and parameters
Model
Measurement range or on-line (MPA)
YTP-100
-0.1~0; -0.1~0.15; 0.3; 0.5; 0.9; 1.5; 2.4;
0-0.1; 0.16; 0.4; 0.25; 1; 1.6; 2.5; 25; 4; 6; 10; 16;
