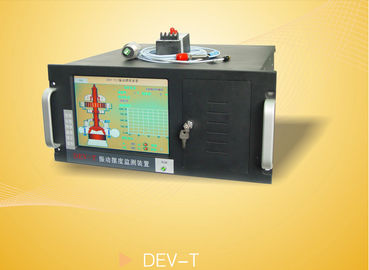

DEV-T Multi Channel Vibration Speed Measuring Instrument With 10.4" LED Dispaly

DEV-T Multichannel vibration pendulum monitoring device , Real time monitoring of vibration swing

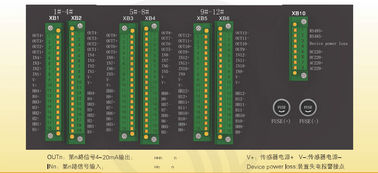

Input channels : 6-24 channels

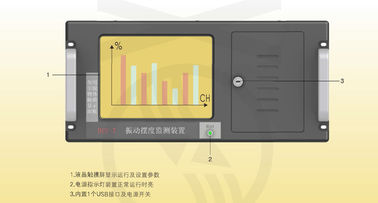

Display : 10.4" LED

Alarm delaying time : 3S

Current :  2A/AC220V

Size : 482X383X218 mm

DEV-T vibration monitoring device of main generator vibration of the power industry swing condition real-time monitoring, will need to monitor the vibration measurement of centralized collection, the definition of each channel can be flexible (name and swing type), display and alarm processing, and the measurement signal is sent to the host computer and other monitoring devices. This device is widely used in power industry automation monitoring system. This product features: high reliability, all devices are used and reliable industrial control products, mature technology, strong anti-interference ability, environment to adapt to a wide range, perfect function, the device uses WINDOWS operating system as the platform, complete functions, can be in the bar graph measurement, real-time curve display, with set parameters, alarm delay, history curve query and other functions, the device also has a self monitoring alarm output, analog output device, operation monitoring and other functions, communication with Set: RS485 (MODBUS RTU communication protocol); use and maintenance simple, internal parts of the device for modular structure, detailed and clear diagnostic information, easy to use and maintain.
