Light Weight Digital Speed Indicator Safe With 30.5mm Self-Locking Buttons

Light Weight Digital Speed Indicator Safe With 30.5mm Self-Locking Buttons

  • Light Weight Digital Speed Indicator Safe With 30.5mm Self-Locking Buttons
  • Light Weight Digital Speed Indicator Safe With 30.5mm Self-Locking Buttons
Light Weight Digital Speed Indicator Safe With 30.5mm Self-Locking Buttons
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: OEM
Model Number: LA39-C
การชำระเงิน:
Minimum Order Quantity: 1
ราคา: contact
Packaging Details: Carton box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 300PCS / month
ติดต่อ
รายละเอียดสินค้า
แสงสูง:

digital rpm indicator

,

speed measuring instrument

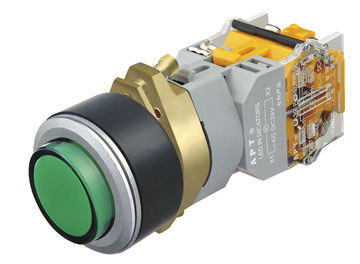

Light Weight Digital Speed Indicator Safe With 30.5mm Self-Locking Buttons









The metal actuation head is solid and safe with the installation hole diameter of φ30.5mm;
The customers can select the contact combination types as per their requirements with maximum six pairs of contacts. The leaf spring type actuation mechanism is adopted with the contact self-cleaning function and reliable contact;

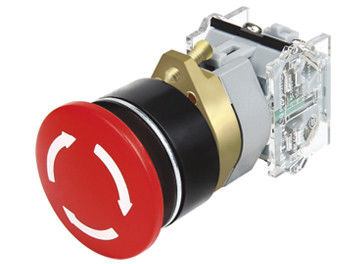

Complete specifications, including reset buttons, self-locking buttons, illuminated buttons, mushroom buttons, knobs, key buttons and emergency stop buttons etc.
Three types of installation methods: to be installed with the inclined screws to prevent looseness, straight screws to save the installation space, and simple nuts
The luminous body of the illuminated button applies pure super bright LED with the lightness above 100cd/m2;
The mechanical service life of the button is above 3,000,000 times; the continuous illumination life of the illuminated buttons is above 100,000 hours;
The symbol leaf or label frame can be provided according to the requirements of the operation instructions from the customers;

Technical ParametersRated Insulation Voltage: AC660V 50Hz

Power Frequency Withstand Voltage: AC1890V
Conventional Thermal Current: 10A
Mechanical Service Life: 3,000,000 times for normal buttons, mushroom buttons and illuminated buttons
300,000 times for knobs, compact buttons, two-position buttons and self-locking buttons
50,000 times for key buttons and emergency stop buttons
Electrical Service Life: 600,000 times
Ambient Temperature: -25℃~55℃
Storage Temperature: -30℃~70℃
Action Frequency: 1,200 times/hour
Production Certification: CCC, CE, RoHS
Compliance Standards: IEC 60947 / GB 14048.5
Protection Class: IP54
