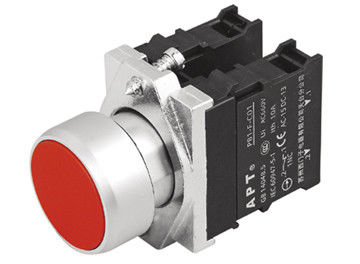

AC600V 50Hz Red Digital Speed Indicator φ22.5mm Switches With IP54 Key Button

AC600V 50Hz Red Digital Speed Indicator φ22.5mm Switches With IP54 Key Button

  • AC600V 50Hz Red Digital Speed Indicator φ22.5mm Switches With IP54 Key Button
AC600V 50Hz Red Digital Speed Indicator φ22.5mm Switches With IP54 Key Button
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: OEM
Model Number: PB1M
การชำระเงิน:
Minimum Order Quantity: 1
ราคา: contact
Packaging Details: Carton box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 300PCS / month
ติดต่อ
รายละเอียดสินค้า
แสงสูง:

digital rpm indicator

,

digital panel indicator

AC600V 50Hz Red Digital Speed Indicator φ22.5mm Switches With IP54 Key Button







PB1L series of products are independently researched and developed by our company with independent intellectual property right, which have applied the internationally popular modular combination structure with delicate design, complete specifications, compact structure and reliable action. The heads are made of zinc alloy material, both solid and durable; the optimized integrated structure of the lamp box is convenient for installation and maintenance; the creep structure is designed for the switching elements with the reliability up to Class 1,000,000.



Technical Parameters

 Rated Insulation Voltage: AC600V 50Hz
Lighting Module AC400V 50Hz; DC250V
Power Frequency Withstand Voltage: AC1890V
Conventional Thermal Current: 10A
Mechanical Service Life: 3,000,000 times for normal buttons, mushroom buttons and illuminated buttons
300,000 times for knobs, compact buttons, two-position buttons and self-locking buttons
50,000 times for key buttons and emergency stop buttons
3,000,000 times for switching elements
Electrical Service Life: 500,000 times/AC-15 at 6A/230V
Ambient Temperature: -25℃~70℃
Storage Temperature: -40℃~80℃
Protection Class: IP65
Key Button IP54
Action Frequency: 1,200 times/hour
Production Certification: CCC, CE, RoHS
