| ชื่อแบรนด์: | Schneider |

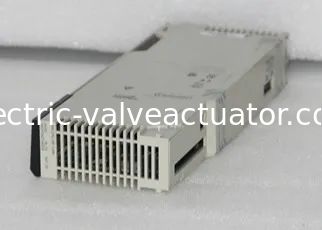

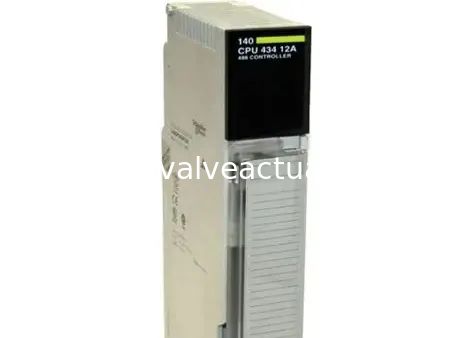

| เลขรุ่น: | 140CPU43412 |
| ขั้นต่ำ: | 1 |
| ราคา: | Negotiations |
| Processor Type | 80486 CPU with mathematical coprocessor |
|---|---|
| Clock Frequency | 66 MHz |
| Internal RAM | 896 kB |
| Instruction Execution Time | 0.1 to 0.5 ms (for LL984 instruction set) |
| Watchdog Timer | 250 ms fixed |
| Clock Drift | ±8 seconds per day |
| I/O Capacity |
Local I/O: 64 input words and 64 output words Remote I/O: 64 input words and 64 output words Distributed I/O: 500 input words and 500 output words per network |
| Maximum Configuration |
Up to 31 remote drops Maximum of 2 remote networks and 3 distributed networks |
| Communication Ports |
1 Modbus Plus port (DB9 female connector) 2 Modbus RS232 ports (DB9 female connectors each) |
| Optional Modules | Supports up to 6 optional modules (NOM, NOE, CR, NMS) |
| Battery | Lithium-ion, 1.2 Ah capacity, 10-year service life |
| Bus Current Requirement | 1250 mA |
| Memory Protection | Key switch and slide switch |
| Status Indicators | LEDs for RUN, READY, ERROR A/B, BAT LOW, COMM activity |
| Dimensions | 4.4 cm (H) × 16.5 cm (W) × 31.0 cm (L) |
| Weight | 0.85 kg (module), 609 g (packaging) |
