| ชื่อแบรนด์: | GE |
| เลขรุ่น: | IC693CPU341 |
| ขั้นต่ำ: | 1 |
| ราคา: | Negotiations |

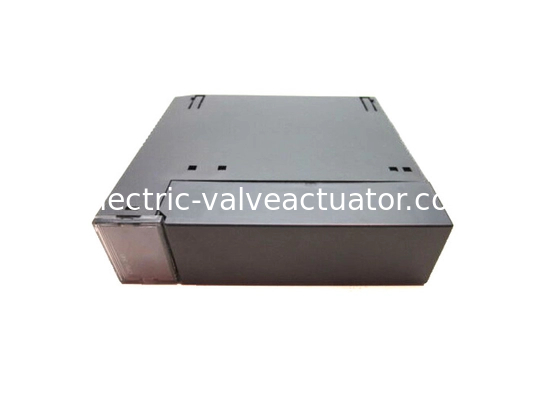

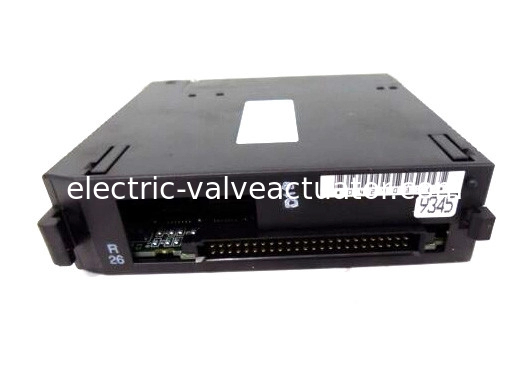

General: The IC693CPU341 module, a member of the GE Fanuc 90-30 Series, is a single slot CPU module which is equipped with 5 baseplates. It contains 4 remote and/or expansion baseplates in addition to the 1 CPU baseplate. It is equipped with an 80C188XL processor.
Power: It runs at 20 MHz and requires a load of 490 milliamps from the +5 VDC rated power supply. The module operates at an ambient temperature range of 0 to 60 degrees Celsius (or 32 to 140 degrees Fahrenheit).
Memory: This CPU’s typical can rate is 0.3 milliseconds per 1K of logic (also known as Boolean contacts). With a maximum user program memory of 80K bytes, the IC693CPU341 has a register memory (%R) of 9999 words; discrete global memory (%G) of 1280 bits, internal coils (%M) of 1024 bits, output (temporary) coils (%T) of 256 bits, and system status references (%S) of 128 bits (with %S, %SA, %SB, %SC having 32 bits each).
I/O: Analog inputs (%AI) and outputs (%AQ) is 1024 and 256 words respectively. The discrete input (%I) and output (%Q) are 512 each. It has 16 words (%SR) system registers which are used for reference table viewing only and cannot be referenced in user logic program.
Specific: This CPU has a singular built-in serial port, which requires a connector to the PLC power supply used in the system. The port supports SNP/SNP-X slave protocols. The IC693CPU341 has PCM/CCM compatibility, although, it does require a CMM module in order to support SNP/SNP-x master, CCM, or RTU slave support. It also requires a PCM module to support RTU master.
LAN: IC693CPU341 has a Local Area Network (LAN) installed. This feature allows the CUP to support a variety of option modules, such as FIP, Profibut, multidrop, Ethernet, GBC, GMC and GCM+ option modules. Its early versions have RAM and optional EPROM or EEPROM for memory storage. New versions, starting with hardware version IC693CPU341-J and firmware Release 4.61, only supports RAM and optional Flash for additional memory needs.
| Processor Speed | 20 MHz |
| I/O Points | 512 |
| Register Memory | 19.9 KBytes |
| Floating Point Math | No |
| 16 BIT System | Yes |
| Processor |
80C188XL |
CPU341 Catalog Number IC693CPU341
| CPU Type | Single slot CPU module |
| Total Baseplates per System | 5 (1 CPU baseplate + 4 expansion and/or remote) |
| Load Required from Power Supply | 490 milliamps from +5 VDC supply |
| Processor Speed | 20 MegaHertz |
| Processor Type | 80C188XL |
| Operating Temperature | 0 to 60 degrees C (32 to 140 degrees F) ambient |
| Typical Scan Rate | 0.3 milliseconds per 1K of logic (boolean contacts) |
| User Program Memory (maximum) | 80K Bytes |
|
Discrete Input Points - %I Discrete Output Points - %Q |
512 512 |
| Discrete Global Memory - %G | 1280 bits |
| Internal Coils - %M | 1024 bits |
| Output (Temporary) Coils - %T | 256 bits |
| System Status References - %S | 128 bits (%S, %SA, %SB, %SC - 32 bits each) |
| Register Memory - %R | 9999 words |
| Analog Inputs - %AI | 1024 words |
| Analog Outputs - %AQ | 256 words |
| System Registers (for reference table viewing only; cannot be referenced in user logic program) | 16 words (%SR) |
| Timers/Counters | >2000 |
| Shift Registers | yes |
| Built-in Ports | 1 (uses connector on PLC power supply). Supports SNP/SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave support; PCM module for RTU master support. |
| Communications | LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules. |
| Override | yes |
| Battery Backed Clock | yes |
| Interrupts | yes |
| Type of Memory Storage | RAM and optional EPROM or EEPROM for early versions. Starting with hardware version IC693CPU341-J and firmware Release 4.61, only RAM and optional Flash are supported. |
| PCM/CCM Compatibility | yes |
