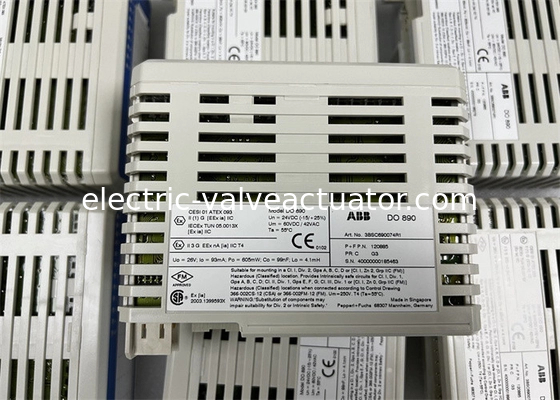

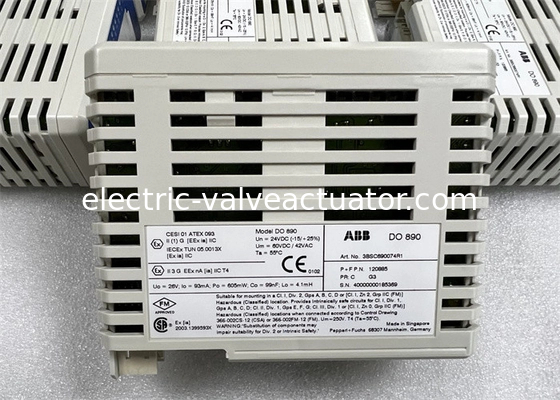

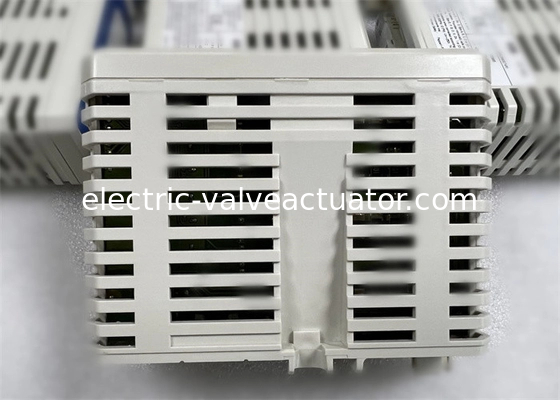

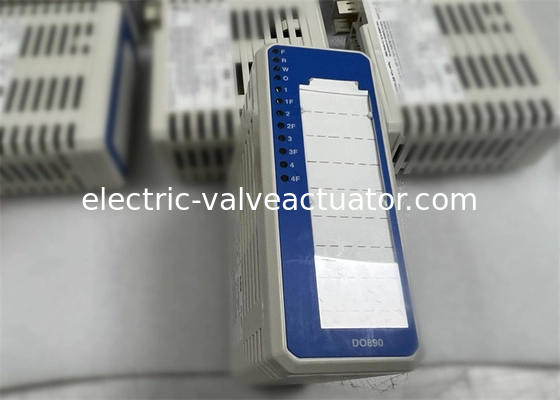

NEW ABB 3BSC690074R1 S800 I/O Digital Output Module DO890 PR:C 11 V, 40 mA 16CH
Description of DO890
Manufacturer : ABB
Product ID: 3BSC690074R1
Catalog Description : DO890 Digital Output 4x1 ch with Intrinsic Safety Interface Rated isol. 50V
I/O modules with intrinsic-safety interface
Number of channels: 4
Separate returns
Load 150-5000 ohms, 11V @ 40mA
Current source
Wire-fault detection
Short-circuit-proof
Shipping Weight: 1.3 Kg
General Information
| Type | Digital Output |
| Signal specification | 11 V, 40 mA |
| Article number | 3BSC690074R1 |
| Number of channels | 4 |
| Signal type | Solenoid driver |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | Yes |
| Mechanics | S800 |
Detailed data
| Isolation | Individually isolated, channel-to-channel and to circuit common ground |
| Output load | 100 - 5000 Ω |
| Current limiting | Short circuit proof current limited output |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 4.4 W |
| Current consumption +5 V Modulebus | Typ. 80 mA, Max. <150 mA |
| Current consumption +24 V external | Typ. 250 mA, Max. <360 mA |
