| ชื่อแบรนด์: | ABB |
| เลขรุ่น: | BC810K02 3BSE031155R1 |
| ขั้นต่ำ: | 1 |
| ราคา: | Negotiations |
| Attribute | Value |
|---|---|
| Weight | 0.3 Kg (0.66 Lbs.) |
| I/O Current, DC | 500mA |
| 24 V Consumption Typ | 140 MA |
| Temperature, Operating | 0 To +55 °C |
| Temperature, Storage | -25 To +70 °C |

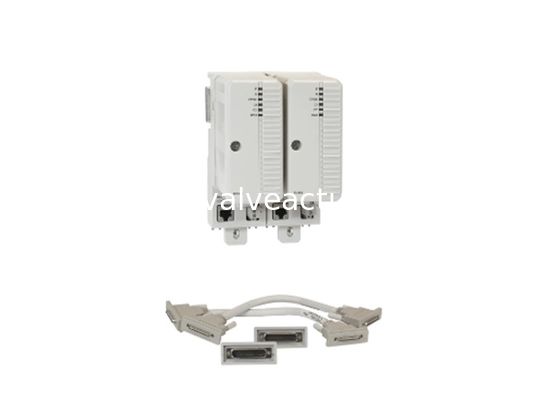

The CEX-Bus unit BC820 is used for extending the on-board communication ports with communication interface units. It is also possible to use redundant communication interfaces on the CEX-Bus. The BC820 CEX-Bus Interconnection Unit offers a way to section the CEX-Bus into two independent segments up to 200 meters apart. This improves availability in systems with redundant communication interfaces.
BC820 can be used with PM858, PM862, PM866 (PR.F or later, which corresponds to PR:H or later for PM866K01), and PM866A.
The BC820 is powered from the processor unit via the CEX-Bus and can also support the CEX-Bus with redundant power through its external connector for power supply. BC820 transmits the RCU-Link and extends the CEX-Bus and RCU-Link cable length up to 200 m. The number of CEX-Bus interfaces is limited to 6 with each BC820.
You need to provide the following cables at a suitable length (not included in the BC820K02 kit):
For more information about the cables see 3BSE036351-*
| Article number | 3BSE071500R1 |
| Redundancy | Yes |
| High Integrity | No |
| Performance | Hot swap supported |
| Power supply | Inputs designated L+ and L- 24 V nominal, variation between 19.2 V DC and 30 V DC. |
| Power consumption +24 V typ/max | 120 mA typical (200 mA max) |
| Power dissipation typ. | 2.9 W typical |
| Temperature, Operating | +5 to +55 °C (+41 to +131 °F) |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Relative humidity | 5 to 95 %, non-condensing |
| Protection class | IP20 according to EN60529, IEC 529 |
| CE- marking | Yes |
| Electrical Safety | UL-certification pending |
| Hazardous location | cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X |
| Marine certificates | ABS, BV, DNV-GL, LR |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
| Height | 185 mm (7.3 in.) |
| Width | 59 mm (2.9 in.) |
| Depth | 127.5 (5.0 in.) |
| Weight | 1.4 kg (3.1 lbs) (BC820K02 package) |
