3BSE081637R1 PM866AK02 ABB Digital I O Module 24 V DC (19.2-30 V DC) 210 / 360 MA

ABB Digital I O Module 3BSE081637R1 PM866AK02 24 V DC (19.2-30 V DC) 210 / 360 mA

The ABB PM866AK02 (ordered as 3BSE081637R1) is a high-performance process automation controller from ABB's System 800xA platform. This controller represents the latest generation of ABB's process automation technology, designed for demanding industrial environments that require exceptional reliability, scalability, and connectivity.

• Advanced Process Control: Delivers precise control for complex industrial processes
• System 800xA Integration: Fully integrated with ABB's Extended Automation platform
• High Availability: Redundancy options for mission-critical applications
• Modular Architecture: Flexible configuration for varying application needs
• Cybersecurity: Built-in security features for modern industrial environments
• I/O Connectivity: Supports extensive I/O options through ABB's Extended Automation architecture

• Ruggedized industrial design for harsh environments
• Modular expansion capabilities
• Advanced thermal management system
• Comprehensive diagnostics capabilities

• Supports ABB's Control Builder M for programming
• Integrated with ABB's Asset Optimization tools
• Advanced alarm and event handling
• Seamless integration with ABB's Historian and MES systems

• Multiple communication protocols supported
• Native System 800xA integration
• Support for wireless communication options
• Cybersecurity-hardened communication stacks

• Oil and gas processing
• Chemical and petrochemical plants
• Power generation and distribution
• Pulp and paper manufacturing
• Mining and minerals processing
• Pharmaceuticals and biotechnology
• Water and wastewater treatment

• Part Number: 3BSE081637R1 (PM866AK02)
• Standard Accessories:
  • Controller mounting hardware
  • Documentation package
  • Configuration tools
• Packaging: Industrial-grade ESD-protected packaging
• Availability: Standard lead time: 4-6 weeks

• Complete documentation package includes:
  • Technical reference manual
  • Configuration guide
  • Redundancy configuration manual
  • Cybersecurity guidelines
  • Certification documents (IEC, ATEX, SIL)
  • Integration guides for third-party systems

• Reliability and simple fault diagnosis procedures
• Modularity, allowing for step-by-step expansion
• IP20 Class protection without the requirement for enclosures
• The controller can be configured with 800xA control builder
• The controller has full EMC certification
• Sectioned CEX-Bus using a pair of BC810 / BC820
• Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
• Built-in redundant Ethernet Communication ports

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

Package including:

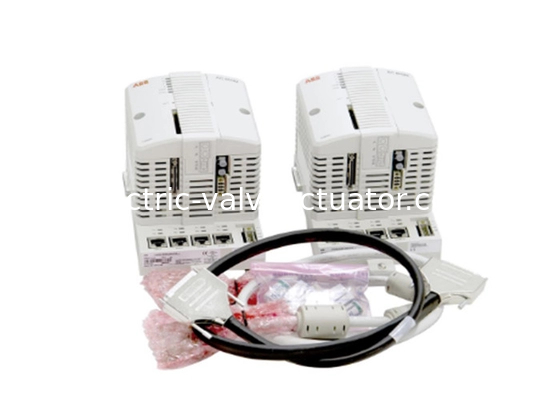

2 pcs PM866A, CPU
2 pcs TP830, Baseplate, width =115mm
2 pcs TB807, ModuleBus terminator
1 pcs TK850, CEX-bus expansion cable
1 pcs TB851, RCU-Link cable
2 pcs Battery for memory backup (4943013-6) 1 for each CPU
