EJA130A-EMS4A-92DA/NF1 Yokogawa High Differential Pressure Transmitter

Name: EJA130A-EMS4A-92DA/NF1 Yokogawa High Differential Pressure Transmitter
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: EJA130A-EMS4A-92DA/NF1
Price: 210.00 USD
Availability: InStock

ชื่อแบรนด์:	Yokogawa
เลขรุ่น:	EJA130A-EMS4A-92DA/NF1
ขั้นต่ำ:	1
ราคา:	Negotiations

ข้อมูลรายละเอียด

คําอธิบายสินค้า

ข้อมูลรายละเอียด

Place of Origin:

Japan

Range:

1-100kPa (M Membrane Box)

Accuracy:

± 0.075% (standard), Optional ± 0.04% (high Accuracy)

Long Term Stability:

± 0.1%/year (typical Value)

Temperature Effect:

± 0.1%/10 ℃ (zero Drift)

Output Signal:

4-20mA DC+HART 7 Protocol

Power Supply Voltage:

10.5~42V DC (≥ 12V Required For HART Communication)

Load Resistance:

0~600 Ω (when Powered By 24V)

Environmental Temperature:

-40~85 ℃ (operation), -40~60 ℃ (with Explosion-proof Certification)

Packaging Details:

New original box

เน้น:

Yokogawa differential pressure transmitter

high differential pressure sensor

low voltage protection transmitter

คําอธิบายสินค้า

EJA130A-EMS4A-92DA/NF1 Yokogawa High Differential Pressure Transmitter

Technical Specifications

Attribute	Value
Range	1-100kPa (M Membrane Box)
Accuracy	± 0.075% (standard), Optional ± 0.04% (high Accuracy)
Long Term Stability	± 0.1%/year (typical Value)
Temperature Effect	± 0.1%/10 ℃ (zero Drift)
Output Signal	4-20mA DC+HART 7 Protocol
Power Supply Voltage	10.5~42V DC (≥ 12V Required For HART Communication)
Load Resistance	0~600 Ω (when Powered By 24V)
Environmental Temperature	-40~85 ℃ (operation), -40~60 ℃ (with Explosion-proof Certification)

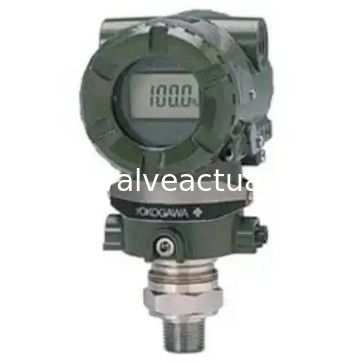

Product Images

Product Details

Name: Yokogawa EJAE118 transmitter
Model: EJAE118/EJX118 transmitter
Brand: Yokogawa

Measurement Ranges:

EJA118E diaphragm sealed differential pressure transmitter
M membrane box: -100~100kPa (-400~400inH2O)
H membrane box: -500~500kPa (-2000~2000inH2O)
M membrane box: 2.5~100kPa (10~400inH2O)
H membrane box: 25~500kPa (100~2000inH2O)

Technical Specifications:

Accuracy: ±0.2%
Protection level: IP66/IP67, NEMA 4X
Explosion proof specifications: NEPSI, FM, CENELEC ATEX, CSA, IECEx
Output signal: 4-20mA DC, BRAIN, HART/HART (1-5V DC) low power consumption, FOUNDATION™ Fieldbus or PROFIBUS PA two-wire digital communication

Power Supply:

BRAN and HART: 10.5~42V DC (regular and explosion-proof)
10.5~32V DC (with lightning arrester)
10.5~30V DC (intrinsic safety, n-type, non flammable)
Digital communication (BRAN and HART: 16.6V DC)
HART (1-5V): 9~28V DC
Fieldbus: 9~32V DC (Intrinsic Safety Entity Mode: 9~24V DC, Intrinsic Safety FISCO Mode: 9~17.5V DC)

Temperature Specifications:

Environmental temperature: -40-85℃ (-40~185℉) (ordinary type)
-30~60℃ (-22~140℉) (internal display table)
The ambient temperature must be within the working temperature range of the filling fluid
Process temperature: -50~250℃ (-58~482℉)

Installation & Materials:

Working pressure: Rated pressure of flange
Installation: Transmitter: 2-inch tube installation; Diaphragm seal: flange installation
Flange sizes: Flat flange type: 3-inch (80mm), 2-inch (50mm), 1 1/2-inch (40mm); Convex flange type: 4-inch (100mm), 3-inch (80mm)
Combination type: High pressure side of convex flange: 4-inch (100mm); Flat flange low pressure side: 3-inch (80mm)
Membrane material: 316 SST 316LSST, Hastelloy C-276, Tantalum, Titanium, Nickel, Monel
Flange material: S25C, 304 SST, 316 SST
Shell: Cast aluminum alloy, corrosion-resistant cast aluminum alloy, ASTM CF-8M stainless steel
