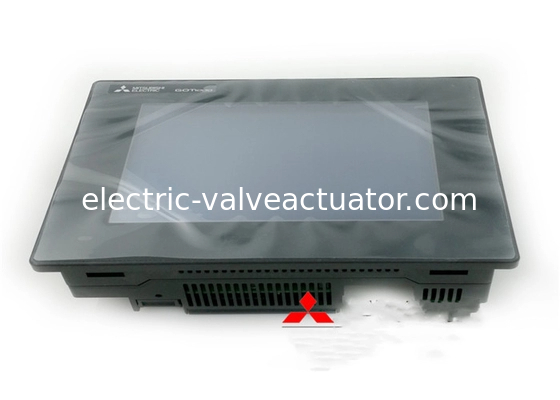

GT2712-STWD 12.1" SVGA HMI 24Vdc Touch Screen Mitsubishi

GT2712-STWD 12.1" SVGA HMI 24Vdc Touch Screen Mitsubishi

Product details



Mitsubishi GOT2000 HMI with 12.1" SVGA screen - white bezel for food & beverage use

The fully updated GOT2000 series HMIs offer increased productivity with lower operating costs and are programmed using GT Works3 software.

The intuitive operation of the GT27 uses multi-touch function and gesture control, such as swipe, or pinch-zoom to enlarge windows - even while wearing gloves.

Specifications

Features:

• Flush, white panel versions for food and beverage applications
• Multi-touch, pinch-zoom capability
• Built-in Ethernet, RS232 & RS422/485
• SD memory card slot
• Operator authentication and logging
• Wide choice of drivers for Mitsubishi and other manufacturers controllers
• All versions have 65K colour screens
• Oil resistant protective sheets available

Specifications

Size: 5.7 ’’ (640x480), 8.4 ”(640x480), 10.4” (800x600), 12.1 ’’ (800x600), 15 ”(1024x768)

- Memory: ROM 57MB, 128MB RAM.

- Screen type: TFT LCD touch, support 65536 colors.

- Communication port: RS232, RS485, RS422, USB, Ethernet.

- Support CC-Link IE Control communication protocol, CC-Link IE Field, CC-Link, bus, MELSECNET / H.

- Support for installing additional wireless LAN modules.

- Protection standard (front side): IP67 (water proof dustproof)

Software range:

• iQ Works2
  The integrated engineering software suite which includes Navigator2, GX Works3, GX Works2, MT Works2, GT Works 3 and RT Tool Box2 Sim.
• Melsoft Navigator2
  The Navigator is at the heart of iQ Works2. It enables the effortless design of entire upper-level systems and seemlessly integrates the other MELSOFT programs included with iQ Works.
• GX Works3
  GX Works3 is the latest generation of programming and maintenance software specifically designed for the Melsec iQ-R and iQ-F series control systems. It includes many new features such as graphic-based system configuration, integrated motion control setup, multiple language support, providing an intuitive engineering environment solution.
• MT Works2
  MT Works2 is a comprehensive motion CPU maintenance and program design tool. It has many useful functions, such as intuitive settings, graphical programming, and digital oscilloscope, simulator and assistance help.
• GT Works3
  GT Works3 is a complete HMI programming, screen creation and maintenance program for GOTs. the software's functionality has been built around the concepts of ease of use, simplification and elegance in design and screen graphics.
• RT Toolbox2
  RT Toolbox2 is the programming environment fr all Mitsubishi MELFA robots. It enables you to create programs in minutes using the MELFA BASIC V robot language. After testing and optimisation it then just takes a couple of mouse clicks to transfer the programs to the robot.
