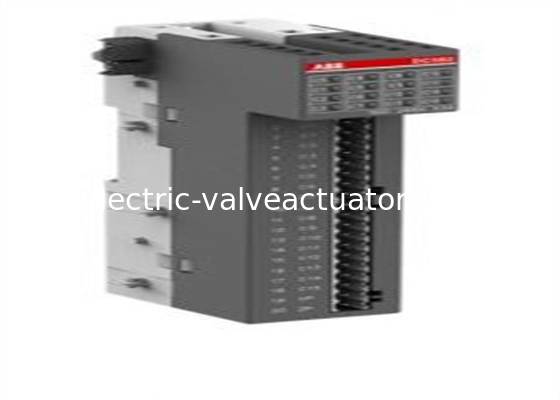

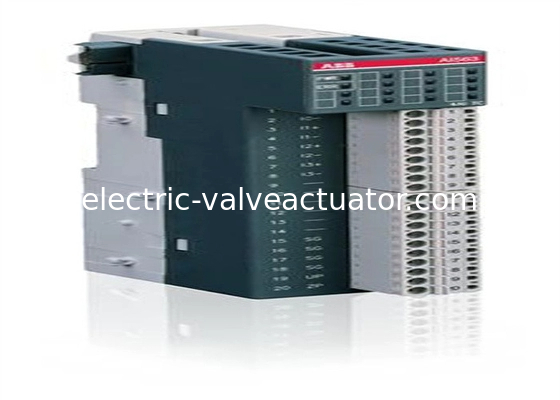

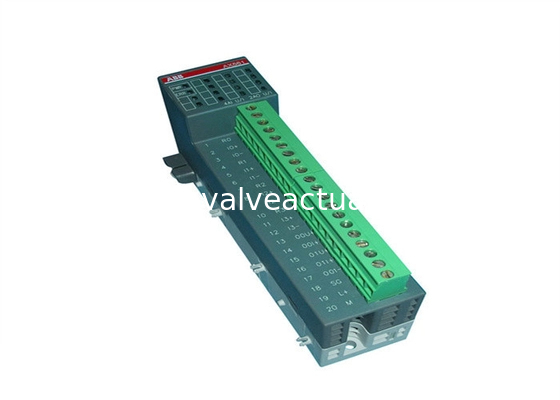

AX561 1TNE968902R1301 S500 Analog IO Mod 4AI / 2AO U/I PLC AC500 Control

AX561 1TNE968902R1301 S500 Analog IO Mod 4AI/2AO U/I PLC AC500 Control

General Information
Extended Product Type:AX561
Product ID:1TNE968902R1301
ABB Type Designation:AX561
EAN:6943747170190
Catalog Description:AX561:S500,Analog IO.Mod.4AI/2AO U/I
Long Description:AX561:S500,Analog IO.Mod.4AI/2AO U/I 12bit+sign, 24VDC, 2-wire in, 1-wire out.

Additional Information
ABB Type Designation:AX561
Ambient Air Temperature:Operation 0 ... +60 °C
Storage -40 ... +70 °C
Analog Inputs:4
Analog Outputs:2
CN8:85371091
Connection Type:Pluggable
Country of Origin:China (CN)
Germany (DE)
Customs Tariff Number:85371091
Degree of Protection:IP20
EAN:6943747170190
EPLAN Catalog Tree:Electrical engineering / PLC / General
ETIM 7:EC001420 - PLC analogue I/O-module
ETIM 8:EC001420 - PLC analogue I/O-module
Gross Weight:0.225 kg
I/O Option:eCo-IO module with Onboard IO - 4AI / 2AO
Invoice Description:AX561:S500,Analog IO.Mod.4AI/2AO U/I
Made To Order:No

Maximum Operating Altitude Permissible:2000 m
Maximum Order Quantity:25 piece
Minimum Order Quantity:1 piece
Mounting Position:Horizontal, Vertical possible with derating
Mounting Type:DIN rail and panel mounting
Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Number of Analog Configurable I/Os:0
Order Multiple:1 piece
Primary Voltage:24 V
Product Main Type:AX561
Product Name:Distributed Automation I/Os
Product Net Depth / Length:135 mm
Product Net Height:74 mm
Product Net Length:135 mm
Product Net Weight:0.122 kg
Product Net Width:34 mm
Product Type:PLC-AC500-eCo
Programming Software:AC500 Control Builder PS501-PROG
Quote Only:No
SCIP:c887cf92-28a3-4b16-8e08-37da9806c17f Germany (DE)
Selling Unit of Measure:piece
Short Description:AX561:S500,Analog IO.Mod.4AI/2AO U/I
Stocked At (Warehouses):Menden, Germany
Finland

New Berlin,Wisconsin, United States
Singapore, Singapore
Beijing, China
Singapore, Singapore
Tokyo, Japan
Australia, Australia
Hangzhou, China
Finland
UNSPSC:32151705
WEEE B2C / B2B:Business To Business
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
eClass:27-24-22-02
