สถานที่กำเนิด: | China |
ชื่อแบรนด์: | OEM |

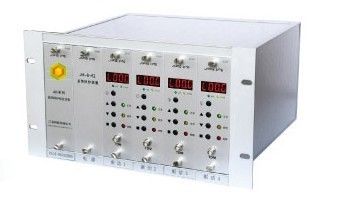

หมายเลขรุ่น: | JM-B-6Z |
จำนวนสั่งซื้อขั้นต่ำ: | 1 set |
---|---|
รายละเอียดการบรรจุ: | Wooden box packing |
เวลาการส่งมอบ: | 15 days after signing the contract |
เงื่อนไขการชำระเงิน: | T/T |
สามารถในการผลิต: | 1000sets |
แสงสูง: | electronic measuring devices,turbine speed sensor |
---|
Functions
1.Highly Intelligent, all parameters can be set on a control panel.
2. Suitable for on-line monitoring for a long time, easy to install and debug, needing no site maintenance,
3.With modular, each modulr has a microprocessor ,the system can be estabilished by any combination, the system reliability is improvede.
4.Each module has a indepent 2 level alarm digital output.
5.4~20mA analog current output.
6.Real time TDM signals output.
7.Free configurations of measuring range, alarm and gamger value.
8.Automatice record and inquirle of maximum value.
9.Password protection to parameter configuration.
10.Free switching between amplitude abd intensity.
Technical Parameters
1.Display mode: Digital LED display.
2.Measuring range: The same as JM-B-6000B om-line rotating machinery protection device.
3.Measuring accracy:±0.5 class, linear error≤1%FS.
4.Module channels: Single siganal I/O(for single module)
5.Input signal: The same as JM-B-6000B on-line rotating machinery protection device
6.Output signal: Current output: 4~20mA(load≤1KQ)
2 level switch signal output: DC 27V/2A or AC250V/5A
TDM synchronous signal output
BUF signal output
7. Environmental temperature: -10~65℃(Relative humidity: ≤85%)
8. Power voltage: AC200V/50Hz±10%
9.Installation: Disk
10. Extermal dimension: (40×chassis intrument position +58mm)(length)×161.5mm(height)×260mm(depth)
11.Hole size:(40×chassis instrument position +27mm)(length)×140mm(height)
Code | Chanels number | Chassis instrument position |
Extamal dimension(mm) L×H×S |
Hole size(mm) L*×H* |
01 | 2 | 4 | 218×161.5×260 | 187×140 |
02 | 3 | 5 | 258×161.5×260 | 227×140 |
03 | 4 | 6 | 298×161.5×260 | 267×140 |
04 | 5 | 7 | 338×161.5×260 | 307×140 |
05 | 6 | 8 | 378×161.5×260 | 347×140 |
06 | 7 | 9 | 418×161.5×260 | 387×140 |
07 | 8 | 10 | 458×161.5×260 | 427×140 |
08 | 9 | 11 | 498×161.5×260 | 467×140 |
09 | 10 | 12 | 538×161.5×260 | 507×140 |
10 | 11 | 13 | 578×161.5×260 | 547×140 |
11 | 12 | 14 | 618×161.5×260 | 587×140 |
