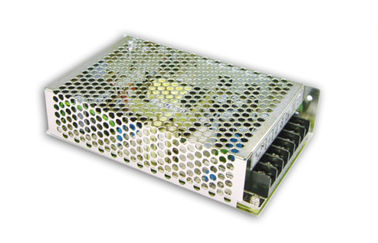

AC/DC enclosed power supply Low Voltage Protection Devices RS100 series 100W

Name: AC/DC enclosed power supply Low Voltage Protection Devices RS100 series 100W
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: RS-100-12
Price: 210.00 USD
Availability: InStock

ชื่อแบรนด์:	MEAN WELL
เลขรุ่น:	RS-100-12
ขั้นต่ำ:	2 sets
เงื่อนไขการจ่ายเงิน:	T/T
ความสามารถในการจําหน่าย:	1000sets

ข้อมูลรายละเอียด

คําอธิบายสินค้า

ข้อมูลรายละเอียด

Place of Origin:

China

MODEL:

RS-100-12

DC VOLTAGE:

12V

CURRENT RANGE:

8.5A

VOLTAGE ADJ. RANGE:

11.4 ~ 13.2V

Packaging Details:

Wooden box packing

Supply Ability:

1000sets

เน้น:

electrical protective devices

dc power contactor

คําอธิบายสินค้า

100W Single Output Switching Power Supply , mean well AC/DC enclosed power supply .

Features :

Universal AC input / Full / range
Protections : Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convertion
Led indicator for power on
100% full load burn-in test
No load power consumption < 0.5w
All using 105℃ long life electro lytic capacitors
Withstand 300VAC Surge input for 5 second
High operating temperature up to 70℃
Wighstand 5G vibration test
High efficiency , long life and high reliability
3 year warranty

MODEL		RS-100-3.3	RS-100-5	RS-100-12	RS-100-15	RS-100-24	RS-100-48
OUTPUT	DC VOLTAGE	3.3V	5V	12V	15V	24V	48V
	RATED CURRENT	20A	7A	8.5A	7A	4.5A	2.3A
	CURRENT RANGE	0 ~ 20A	0 ~ 16A	0 ~ 8.5A	0 ~ 7A	0 ~ 4.5A	0 ~ 2.3A
	RATED POWER	66W	80W	102W	105W	108W	110.4W
	RIPPLE & NOISE	80mVp-p	80mVp-p	120mVp-p	120mVp-p	120mVp-p	200mVp-p
	VOLTAGEADJ.RANGE	3.2 ~3.5V	4.75~5.5V	11.4~13.2V	14.25~16.5V	22.8~26.4V	45.6~52.8V
	VOLTAGE TOLERANCE	±3.0%	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINEREGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOADREGULATION	±2.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP,RISE TIME	500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
	HOLD UP TIME	100ms/230VAC 18ms/115VAC at full load
INPUT	VOLTAGERANGE	88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY	74%	77%	81%	82%	84%	84%
	DC CURRENT	2.5A/115VAC 1.5A/230VAC
	INRUSH CURRENT	COLD START 40A/230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION	OVERLOAD	110 ~ 150% rated output power
	OVERLOAD	Protectiontype:Hiccup mode,recovers automatically after fault condition is removed
	OVER VOLTAGE	3.8~4.45V	5.75~6.75V	13.8~16.2V	17.25~20.25V	27.6~32.4V	55.2~64.8V
	OVER VOLTAGE	Protection type:Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-25~+70°C (refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-40~+85°C 10~95%RH
	TEMPCOEFFICIENT	±0.03%/°C(0~50°C)
	VIBRATION	10~500HZ,5G 10min/1cycle,60min. each alongX,Y,Zaxes
SAFETY & EMC	SAFETY STANDARDS	U60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 250 °C / 70% RH
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, light industry level, criteria A
OTHERS	MTBF	260.8Khrs min. MIL-HDBK-217F(25 0C)
	DIMENSION	1599738mm (LWH)
	PACKING	0.6Kg; 24pcs/15.4Kg/0.7CUFT
