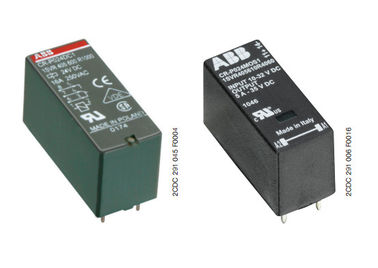

CR-P range

The pluggable pcb interface relays

Main benefits

• Switching high contacts on a small foot print
• Suitable for harsh environments with IP67 rating
• Customizable with pluggable function modules

Main features

• 9 different coil voltages 12-110 V DC / 24-230 V AC
• 1 c/o contact (16 A) or 2 c/o contact version (8 A)
• Optional gold plated contacts available
• Logic and standard sockets
• Cadmium free contact material
• Pluggable function modules such as RC elements and varistors available

Pluggable interface relays and optocouplers are used for electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC (programmable logic controller), PC or field bus systems and the sensor / actuator level. They don’t use additional internal protective circuits and thus are overload-proof against short-time variations like current or voltage peaks.
