Fire XBD-DL High Speed Multistage Centrifugal Pump Horizontal Single Outlet

รายละเอียดสินค้า:

สถานที่กำเนิด:	China
ชื่อแบรนด์:	KAIQUAN
หมายเลขรุ่น:	XBD-DL Series

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	1 set
รายละเอียดการบรรจุ:	Wooden box packing
เวลาการส่งมอบ:	25 days after signing the contract
เงื่อนไขการชำระเงิน:	T/T
สามารถในการผลิต:	1000sets

ติดต่อ

รายละเอียดสินค้า

Range of head:

<=127m

Range of quantity:

1.8~2000m3/h

แสงสูง:

electromagnetic brakes

electro hydraulic machinery

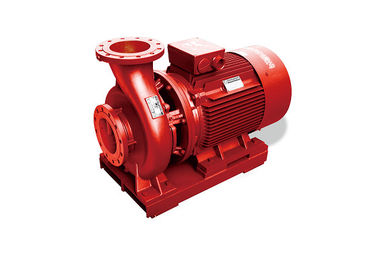

Fire XBD-DL High Speed Multistage Centrifugal Pump Horizontal Single Outlet

Compared with previous fire pumps, XBDseries features a reduced outlet pressure difference among pumps of the same quantity of flow, as small as 0.05MPaonly. Thanks to increased spectrum density and more reasonable distribution, this series is better adapted to fire fighting needs at different floors and to pipe resistance, and makes itself a better choice in design. The products of XBDseries have reached the leading level and feature a small footprint, light weight, low noise, high performance, reliable operation and other advantages.

Applicable conditions

Range of quantity:2.5L—200L/S

Range of pressure:0.11—2.38Mpa

Liquid temperature: ≤80℃ clean water

●The XBDseries centrifugal fire pumps are divided into; vertical single-stage, vertical multi-stage single-outlet, horizontal multi-stage single-outlet, vertical multistage multi-outlet, horizontal multi-stage multi-outlet types

●Copper alloy impellers, copper alloy seal rings, and stainless steel shafts are used for XBDseries centrifugal fire pump to ensure “it starts running any time”

●The vertical/horizontal multi-stage multi-outlet series meet the needs of sectional and different pressures for high-rise buildings

●The intermediate outlets of the horizontal multi-stage multi-outlet series can be mounted in two ways: upright, horizontal

●The end and intermediate outlets of the vertical multi-stage multi-outlet series can be mounted in four directions: 0°, 90°, 180° and 270° in relation with the suction direction

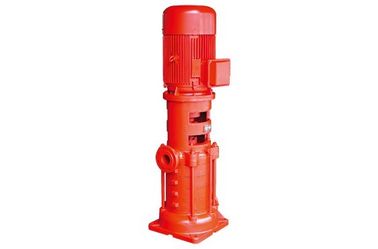

●The vertical multi-stage series is suitable for compact mounting spaces
