Transmitter Series JM-B-3B Vibration Transmitter,4~20mA current signal output

Portable Rotational Speed Sensor , High Accuracy Vibration Transmitter

Use

       This transmitter ia used to turn the measured vibration value to standard 4~20mA current signal output, and feeds it to PLC, DCS or DEH systems ,it is small in size, with high accuracy and easy to install.

Functions

1.Mianly applying to measuring absolute vibration(i.e.bearing vibration) of rotating machinery.

2.4~20mA analog current output.

3.TDM synchronous signal output.

Technical parameters

1.,Measuring range: Frequency 10~300Hz

                                 Amplitude0~200µm*,0~500µm(peak-peak)

                                 Intensity0~20mm/s*,0~30mm/s,0~40mm/s(RMS value)

2.Mesuring accuracy: ±0.5class, linear error≤1％FS

3.Input signala: Zhj-2 vibration rate sensor, CWY-DO-Ф8mm eddy current sensor

4.Output signal: 4~20mA (constant current)

5.Environmental temperature: -10~65℃

6.Relative humidity: ≤85％

7.Power votage: DC+24V

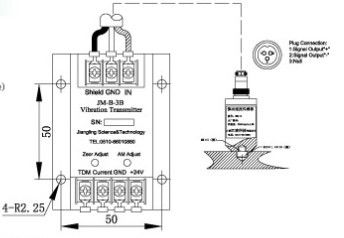

8.Extemal dimension: 80mm(length)×64mm(wide)×45mm(height)

9.Installation hole size and pattern: 50mm(length)×50mm(wide)(diameter:Ф5mm)
